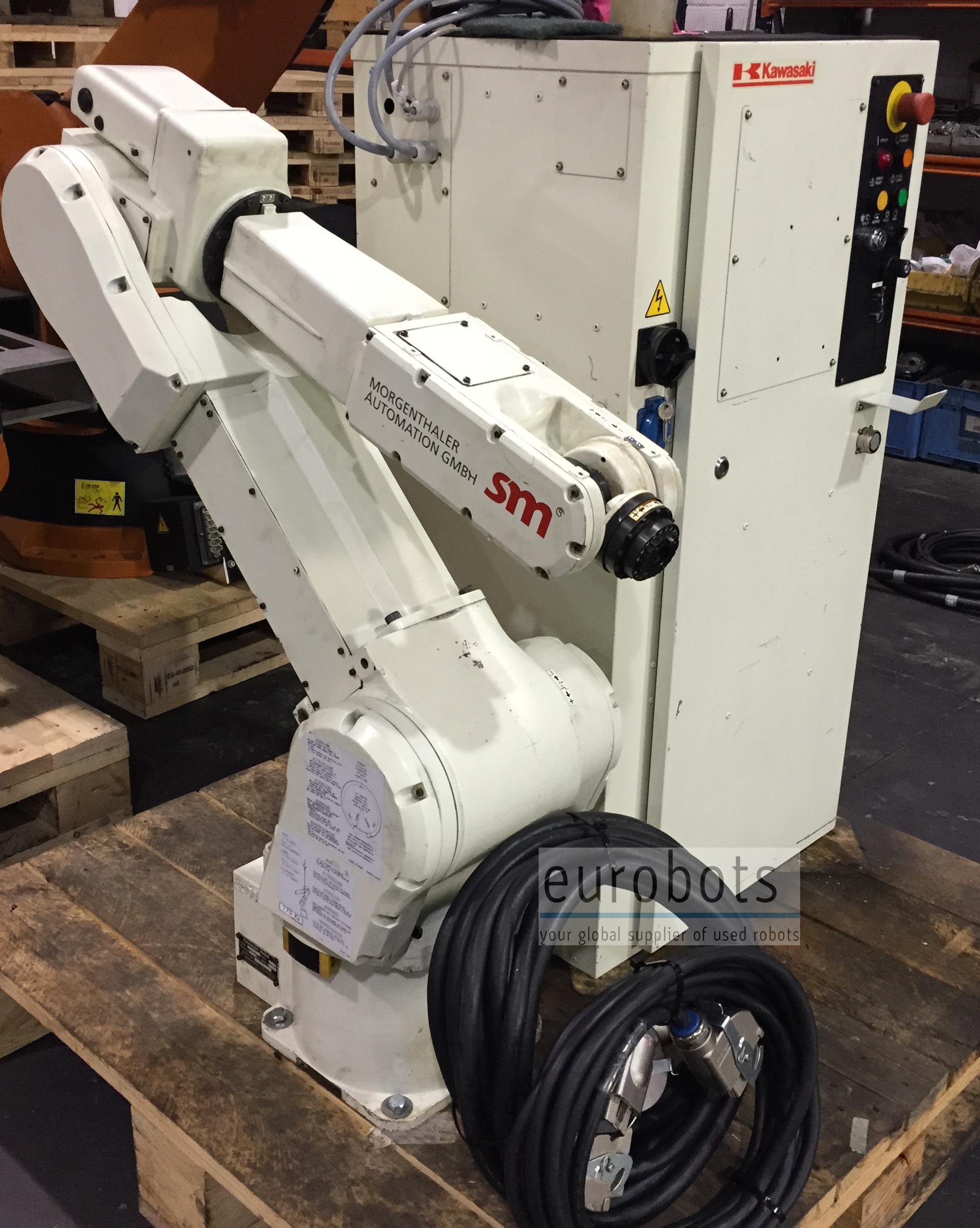

Kawasaki FS06

0 Stücke auf Lager

Robot Kawasaki FS 06 Series. These robots are designed for medium payload applications requiring a flexible work envelope. the slim arm design, simplified vertical alignment and robot pedestal mounted joint 1 axis/motor allow the F Series robots to require less plant floor space while having an extremely large work envelope. The F Series robots provide a great variety of options for the customer, having different arm combinations for various reaches and payloads.

Robot Info:

  • Maximum Load of Robot: 6 Kg.
  • Maximum Reach Horizontal: 1102mm.
  • Repeatability: 0,05mm.
  • Controller: C

Robot Motion Speed:

  • Axis 1: 240º/s
  • Axis 2: 240º/s
  • Axis 3: 250º/s
  • Axis 4: 430º/s
  • Axis 5: 430º/s
  • Axis 6: 720º/s

Robot Applications:

  • Arc welding
  • Handling of parts


Lichtbogenschweißen , Punktschweißen , Drücken Sie Tending , Be- und Entladen von Teilen , Handhabung von Teilen , Polieren , Messung , Montage von Teilen
